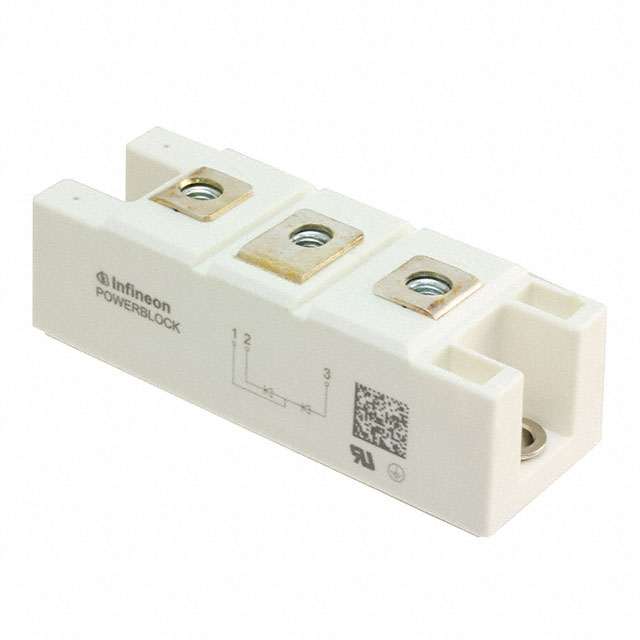

DD170N16SHPSA1
DIODE MOD GP 1600V 165A BGPB34SBManufacturer: Infineon Technologies
Categories: Diode Arrays
Quality Control: Learn More
Infineon Technologies DD170N16SHPSA1 is a high-performance diode module featuring a 1 pair series connection configuration. This general purpose diode boasts a maximum repetitive peak reverse voltage (Vr) of 1600V and an average rectified current (Io) per diode of 165A. Designed for demanding applications, it exhibits a low reverse leakage current of 9 mA at 1600V. The component utilizes standard technology and is housed in a BG-PB34SB-1 module for robust chassis mounting. With a maximum junction operating temperature of 135°C, this diode array is suitable for power electronics in industries such as industrial automation, renewable energy systems, and electric vehicle powertrains. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 165A |
| Supplier Device Package | BG-PB34SB-1 |
| Operating Temperature - Junction | 135°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Current - Reverse Leakage @ Vr | 9 mA @ 1600 V |
Request a Quote
