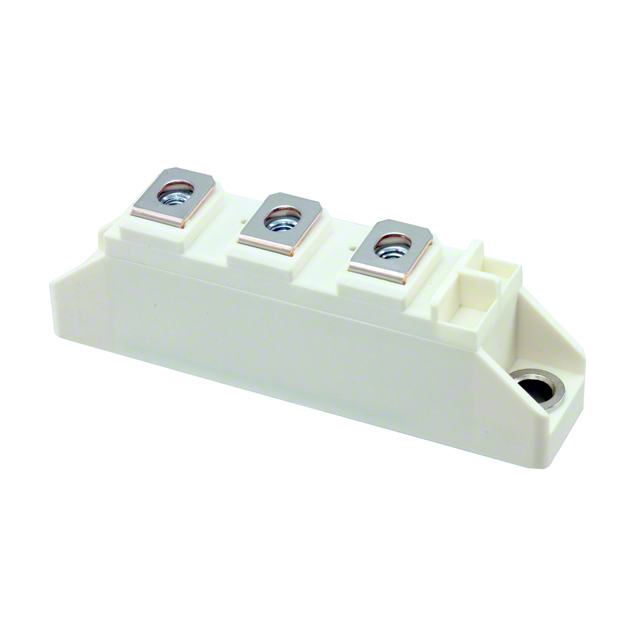

DD100N16SHPSA1
DIODE MODULE GP 1.6KV 130AManufacturer: Infineon Technologies
Categories: Diode Arrays
Quality Control: Learn More
Infineon Technologies DD100N16SHPSA1 is a high-performance diode module featuring a 1 pair series connection configuration. This component offers a robust 1600V reverse voltage capability and a substantial 130A average rectified current per diode. Designed for demanding applications, it utilizes standard diode technology for reliable operation. The module is chassis mounted, facilitating efficient heat dissipation and integration into power systems. Its robust construction and specifications make it suitable for use in industrial power supplies, electric vehicle charging infrastructure, and renewable energy systems. The DD100N16SHPSA1 is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 130A |
| Supplier Device Package | Module |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
