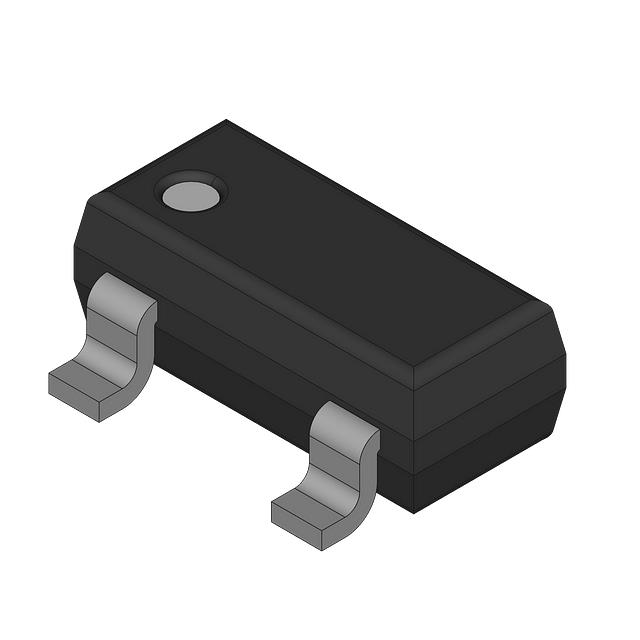

BAW156
DIODE ARRAY GP 85V 140MA SOT23-3Manufacturer: Infineon Technologies
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Anode 85 V 140mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 µs |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 140mA (DC) |
| Supplier Device Package | SOT23-3 (TO-236) |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 85 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 50 mA |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V |
