BAV 99 B5003
DIODE ARRAY GP 80V 200MA SOT23Manufacturer: Infineon Technologies
Categories: Diode Arrays
Quality Control: Learn More

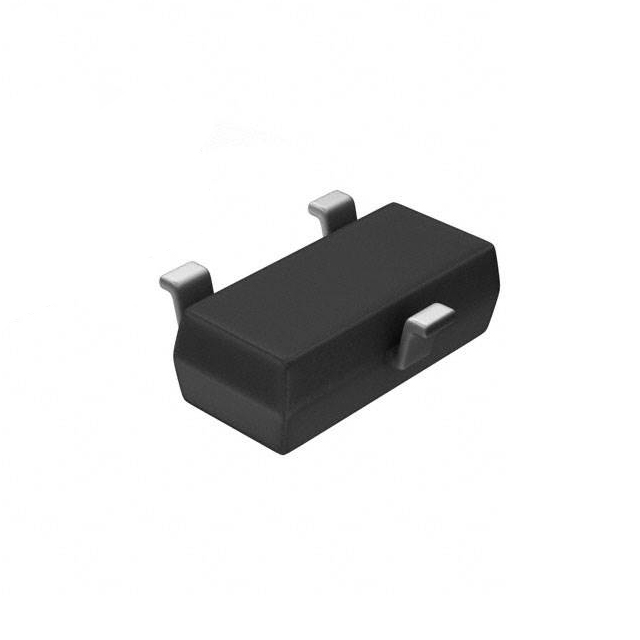

Infineon Technologies BAV-99-B5003 is a dual diode array featuring a series connection configuration. This small signal diode array offers a maximum reverse voltage of 80 V and a continuous forward current of 200 mA per diode. The device exhibits a low reverse leakage current of 150 nA at 70 V and a fast reverse recovery time of 4 ns. With a forward voltage drop of 1.25 V at 150 mA, it is suitable for applications requiring efficient switching. The BAV-99-B5003 is packaged in a SOT-23 (TO-236-3, SC-59) surface-mount case and is supplied on tape and reel. This component is widely utilized in industrial control, consumer electronics, and telecommunications sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Supplier Device Package | PG-SOT23 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 150 nA @ 70 V |
