ISSI20R03HXUMA1
ISSI20R03HXUMA1Manufacturer: Infineon Technologies
Categories: Digital Isolators
Quality Control: Learn More
Digital Isolator 5700Vrms 1 Channel CMTI 8-SOIC (0.295"", 7.50mm Width)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.85V ~ 3.5V |
| Data Rate | - |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5700Vrms |
| Inputs - Side 1/Side 2 | 1/1 |
| Supplier Device Package | PG-DSO-8-66 |
| Rise / Fall Time (Typ) | 8µs, 1.9µs |
| Common Mode Transient Immunity (Min) | - |
| Propagation Delay tpLH / tpHL (Max) | 20µs, 6µs |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
Request a Quote
Clients Also Buy
ISO1I813TXUMA1
DGTL ISOL 500VAC 8CH SPI 48TSSOP

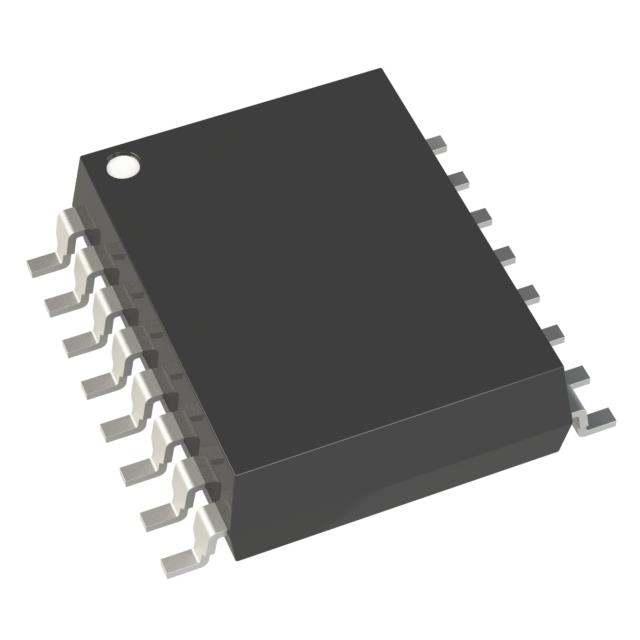

4DIR0400HAXUMA1
