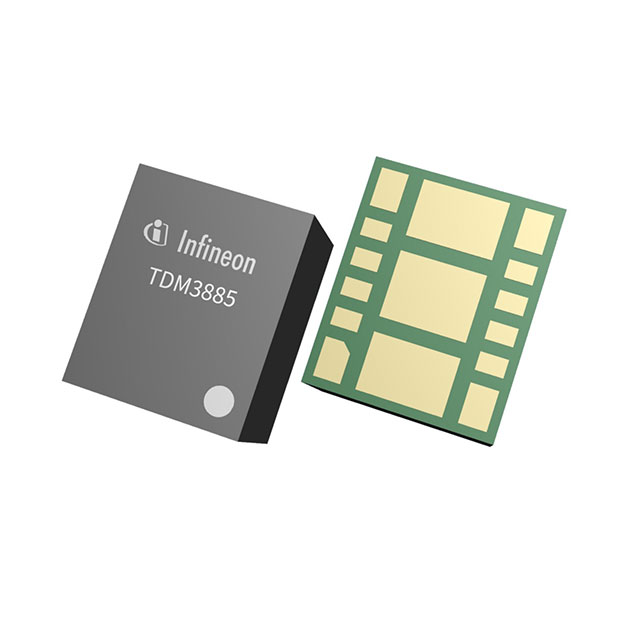

TDM3885XUMA1
IC REG BUCK ADJ 4A LGA-15-1Manufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Infineon Technologies TDM3885XUMA1 is a highly efficient, adjustable output buck switching regulator designed for demanding applications. This single-output device features a 4A output current capability and operates with a switching frequency of 600kHz, facilitating compact inductor selection. Its adjustable output voltage ranges from 0.5V to 5V, providing flexibility for various supply rail requirements. The regulator's input voltage range is 4.7V to 14V, making it suitable for a wide array of power sources.
The TDM3885XUMA1 incorporates a synchronous rectifier, enhancing overall efficiency. It is housed in a 15-FLGA package (PG-LGA-15-1) for surface mounting and operates across an industrial temperature range of -40°C to 125°C. This component finds application in sectors such as automotive, industrial automation, and power management systems. The device is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 15-FLGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Voltage - Input (Max) | 14V |
| Topology | Buck |
| Supplier Device Package | PG-LGA-15-1 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 4.7V |
| Voltage - Output (Min/Fixed) | 0.5V |
Request a Quote
Clients Also Buy
IRPS5401MXI04TRPAUMA1
IC REG ADJ 50A 5OUT 56QFN

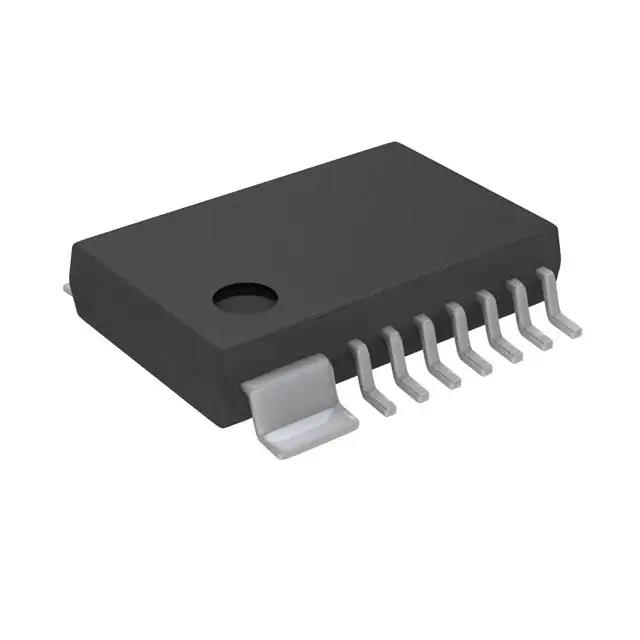

TLF50241ELXUMA2
