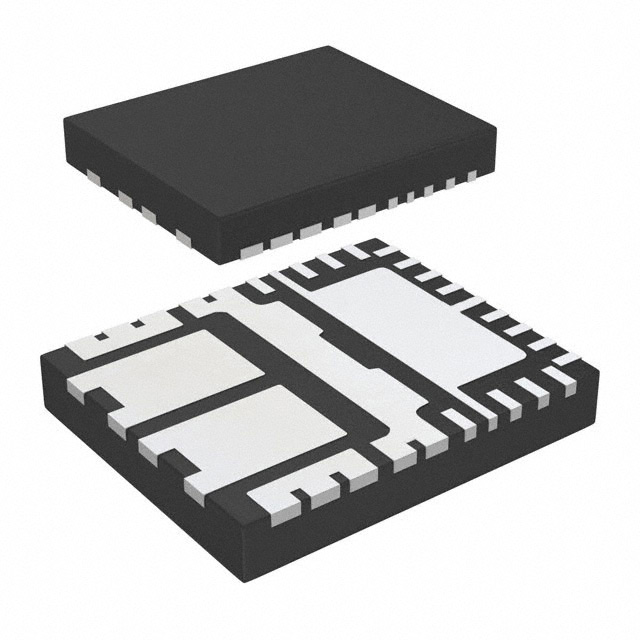

IR3892MTRPBF
IC REG BUCK ADJ 6A DL PQFNManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
Infineon Technologies SupIRBuck® IR3892MTRPBF is a highly efficient dual-output adjustable buck switching regulator. This IC provides a 6A output current per channel and features a wide input voltage range from 1V to 21V, with an adjustable output voltage from 0.5V up to 18.06V. The IR3892MTRPBF operates with a switching frequency adjustable between 300kHz and 1MHz, enabling optimized performance for various application requirements. Its integrated synchronous rectifier design enhances efficiency, minimizing power loss. The 31-PowerVFQFN package, supplied on tape and reel, is suitable for surface mount applications. This regulator is commonly employed in high-performance computing, telecommunications infrastructure, and industrial power supply systems where precise voltage regulation and high current delivery are critical. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: SupIRBuck®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 31-PowerVFQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 1MHz |
| Voltage - Input (Max) | 21V |
| Topology | Buck |
| Supplier Device Package | 31-PQFN (5x6) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18.06V |
| Voltage - Input (Min) | 1V |
| Voltage - Output (Min/Fixed) | 0.5V |
