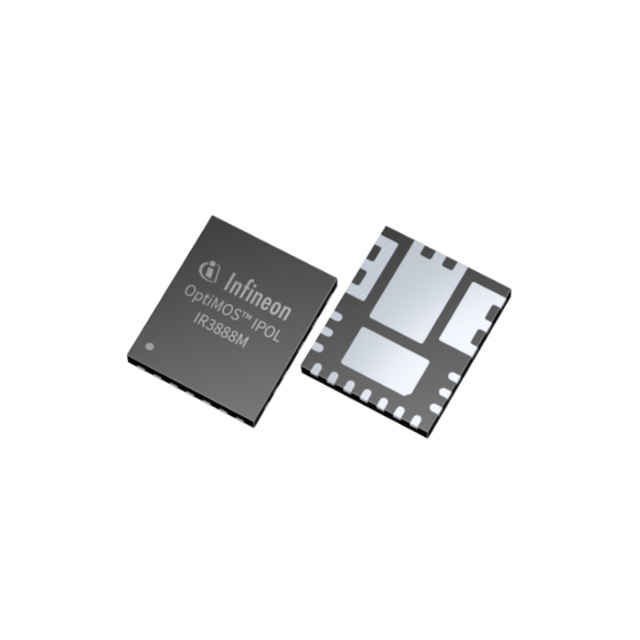

IR3888MTRPBFAUMA1
IC REG BUCK ADJ 25A 22IQFNManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
Infineon Technologies OptiMOS™ IR3888MTRPBFAUMA1 is a high-performance buck switching regulator IC designed for demanding power conversion applications. This adjustable output device offers a continuous output current of 25A and operates with a wide switching frequency range from 600kHz to 2MHz. Featuring a synchronous rectifier for enhanced efficiency, the IR3888MTRPBFAUMA1 supports input voltages from 2V to 17V and provides an adjustable output voltage as low as 0.6V. Its integrated solution in a 22-PowerVQFN package simplifies board layout and reduces component count. This component is well-suited for use in automotive, industrial, and high-performance computing systems requiring efficient and compact power delivery. The device is supplied in a Tape & Reel (TR) package.
Additional Information
Series: Optimos™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 22-PowerVQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 25A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz ~ 2MHz |
| Voltage - Input (Max) | 17V |
| Topology | Buck |
| Supplier Device Package | PG-IQFN-22-2 |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 17V |
| Voltage - Input (Min) | 2V |
| Voltage - Output (Min/Fixed) | 0.6V |
