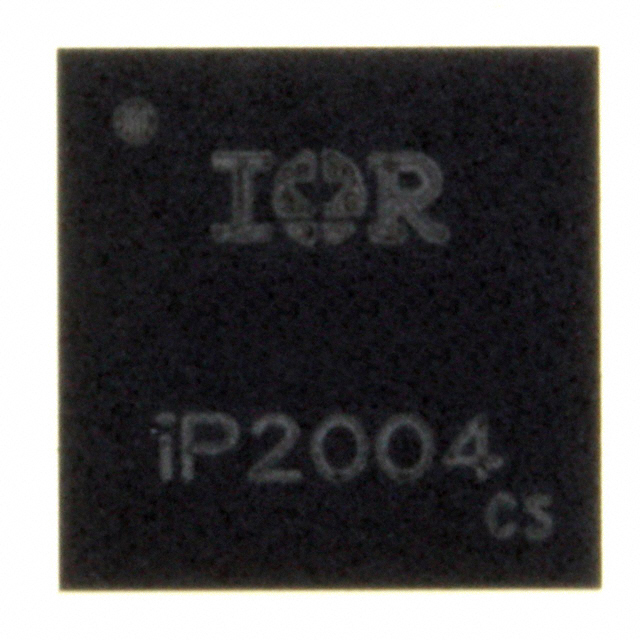

IP2004TR
IC REG BUCK ADJ 40A LGAManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
Infineon Technologies iPOWIR™ series IP2004TR is a highly integrated, synchronous buck switching regulator IC. This device delivers a robust 40A output current, supporting an adjustable output voltage range from 0.8V to 8V, with an input voltage range of 3V to 13.2V. The IP2004TR features a high switching frequency capability, adjustable from 250kHz to 1.5MHz, enabling efficient power conversion and a compact solution footprint. Its Power Block (LGA) package, measuring 7.7x7.7mm, is designed for surface mount applications. The internal synchronous rectifier contributes to improved efficiency. This component is suitable for demanding power delivery applications in automotive, industrial, and advanced computing sectors. Provided in Tape & Reel packaging.
Additional Information
Series: iPOWIR™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Power Block (LGA) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 40A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 1.5MHz |
| Voltage - Input (Max) | 13.2V |
| Topology | Buck |
| Supplier Device Package | LGA (7.7x7.7) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 8V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.8V |
