IP1837TRPBF
IC REG BUCK ADJ 35A 17LGAManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
Infineon Technologies iPOWIR™ series buck switching regulator, part number IP1837TRPBF. This positive adjustable output device offers a current capability of 35A with an output voltage range from 0.6V to 12V. It operates with a switching frequency adjustable from 225kHz to 1.65MHz, supporting efficient power conversion. The regulator features an integrated synchronous rectifier, simplifying external component count. Designed for surface mount applications, it is supplied in a 17-LGA (7.65x7.65) package on tape and reel. Input voltage compatibility ranges from 1.5V to 16V, with an operating temperature range of -40°C to 125°C (TJ). This component is suitable for demanding power delivery applications across various industrial sectors including automotive, industrial automation, and consumer electronics.
Additional Information
Series: iPOWIR™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 17-LLGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 35A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 225kHz ~ 1.65MHz |
| Voltage - Input (Max) | 16V |
| Topology | Buck |
| Supplier Device Package | 17-LGA (7.65x7.65) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 12V |
| Voltage - Input (Min) | 1.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
Clients Also Buy

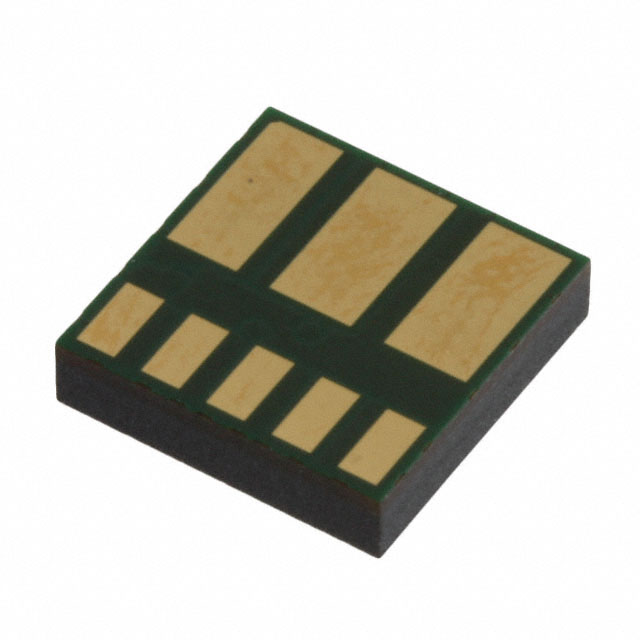

IP2005ATRPBF
