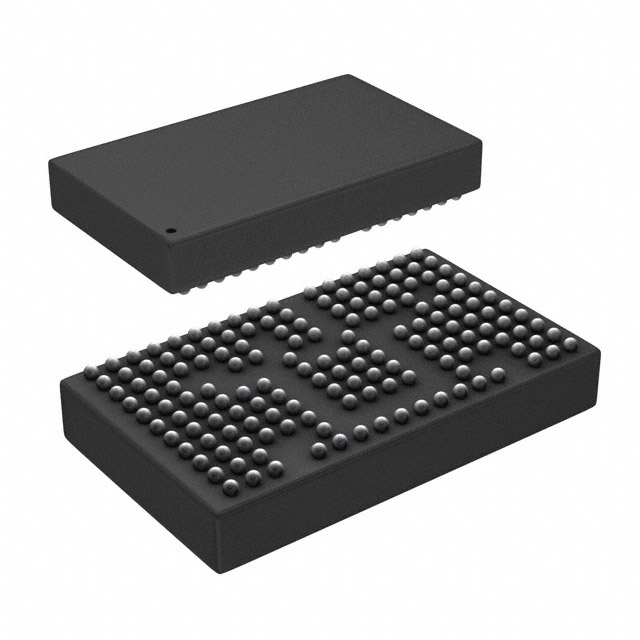

IP1206TRPBF
IC REG BUCK ADJ SGL/DL 36LGAManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
Infineon Technologies iPOWIR™ IP1206TRPBF is a high-performance adjustable buck switching regulator designed for demanding power applications. This single or dual output device offers adjustable output voltages from 0.8V to 5.5V, with maximum output currents of 30A for a single output or 15A per output for dual configurations. Featuring a switching frequency range of 200kHz to 600kHz and integrated synchronous rectification, the IP1206TRPBF achieves high efficiency in a compact 36-LGA (9.25x15.5mm) package. Its input voltage range is 7.5V to 14.5V. This component is well-suited for use in high-power computing, telecommunications infrastructure, and industrial automation. The device operates across a junction temperature range of -40°C to 125°C and is supplied in tape and reel packaging.
Additional Information
Series: iPOWIR™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-LGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 or 2 |
| Function | Step-Down |
| Current - Output | 30A, 15A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 600kHz |
| Voltage - Input (Max) | 14.5V |
| Topology | Buck |
| Supplier Device Package | 36-LGA (9.25x15.5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 7.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
