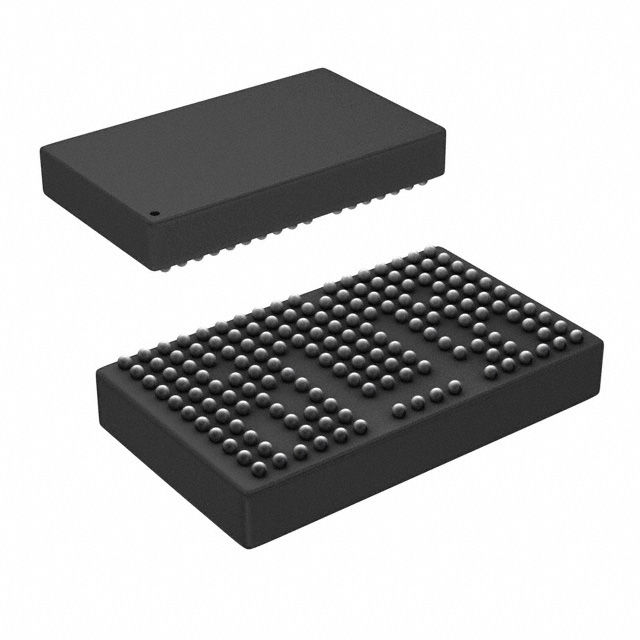

IP1202PBF
IC REG BUCK ADJ SGL/DL 161BGAManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
Infineon Technologies iPOWIR™ series IP1202PBF is a highly integrated, high-performance buck switching regulator designed for demanding power delivery applications. This device offers adjustable output voltage from 0.8V up to 5V, capable of delivering up to 30A on its primary output or 15A for dual-output configurations. Featuring a wide input voltage range of 5.5V to 13.2V and operating at switching frequencies between 170kHz and 460kHz, the IP1202PBF optimizes efficiency and power density. The inclusion of a synchronous rectifier further enhances performance. Packaged in a 161-BGA Power Module (15.5x9.25) for surface mounting, this component is suitable for advanced computing, telecommunications infrastructure, and industrial power systems requiring robust and efficient voltage regulation.
Additional Information
Series: iPOWIR™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 161-BBGA Power Module |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 or 2 |
| Function | Step-Down |
| Current - Output | 30A, 15A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 170kHz ~ 460kHz |
| Voltage - Input (Max) | 13.2V |
| Topology | Buck |
| Supplier Device Package | 161-BGA Power Block (15.5x9.25) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
