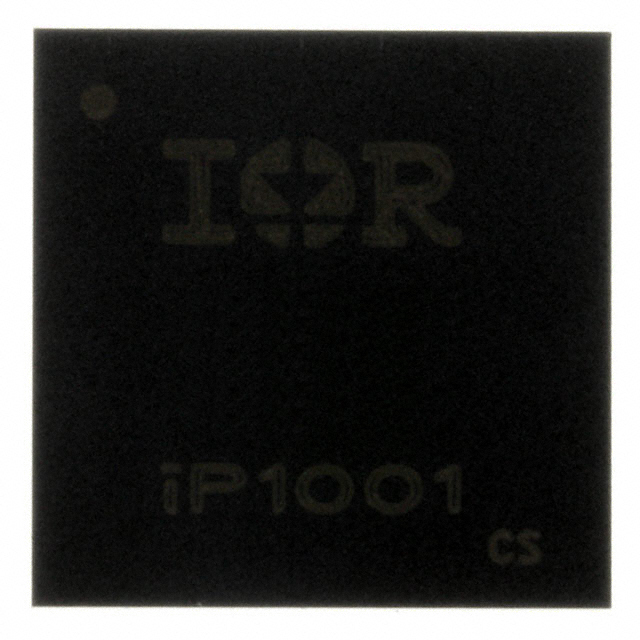

IP1001TR
IC REG BUCK ADJ 20A 218BGAManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Infineon Technologies iPOWIR™ series IP1001TR is a highly integrated buck switching regulator power module designed for high-current, high-efficiency step-down applications. This device offers an adjustable output voltage from 0.925V up to 2V, capable of delivering a continuous output current of 20A. Featuring a synchronous rectification topology, it optimizes power conversion efficiency. The IP1001TR operates with selectable switching frequencies of 200kHz or 300kHz and accepts input voltages ranging from 3.3V to 12V. Its 218-BGA Power Block package (14x14) facilitates efficient heat dissipation and a compact footprint. This power module is suitable for demanding applications in data centers, industrial automation, and high-performance computing. The IP1001TR is supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: iPOWIR™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 218-BFBGA Power Module |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 20A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz, 300kHz |
| Voltage - Input (Max) | 12V |
| Topology | Buck |
| Supplier Device Package | 218-BGA Power Block (14x14) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 2V |
| Voltage - Input (Min) | 3.3V |
| Voltage - Output (Min/Fixed) | 0.925V |
