CY39C326PW-G-ERE1
IC REG BUCK-BST ADJ 800MA 20WLPManufacturer: Infineon Technologies
Categories: DC DC Switching Regulators
Quality Control: Learn More

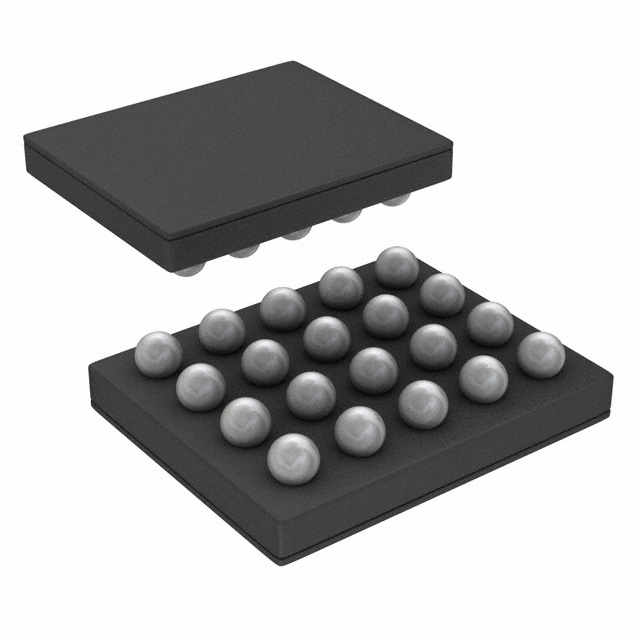

Infineon Technologies CY39C326PW-G-ERE1 is an adjustable buck-boost switching regulator designed for applications requiring efficient voltage conversion from 2.5V to 5.5V input. This component delivers a stable positive output voltage, adjustable from 0.8V up to 5V, with a maximum output current of 800mA. Featuring a high switching frequency of 5.8MHz, the CY39C326PW-G-ERE1 utilizes a synchronous buck-boost topology to optimize power efficiency. Its 20-WLP (2.15x1.94) package, supplied on tape and reel, is suitable for surface mounting. The operating temperature range of -40°C to 85°C makes it robust for use in portable electronics and other demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFBGA, WLPBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 5.8MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-WLP (2.15x1.94) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
