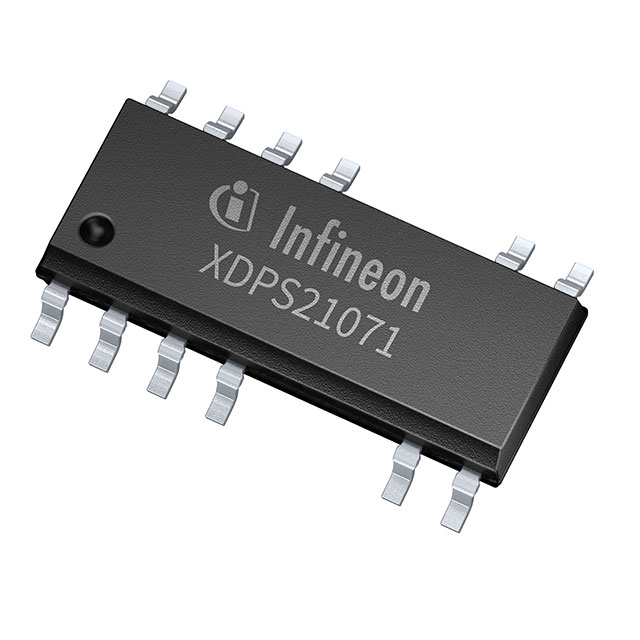

XDPS21071XUMA1
DIGITAL FFR CONTROLLER, DSO12Manufacturer: Infineon Technologies
Categories: DC DC Switching Controllers
Quality Control: Learn More
Infineon Technologies XDPS21071XUMA1 is a digital flyback controller designed for positive output DC-DC conversion. This component operates as a step-up/step-down regulator with a single output phase. Key control features include current limiting and soft start functionality. The switching frequency range for the XDPS21071XUMA1 is 24.9kHz to 139.4kHz. It is packaged in a 16-SOIC (0.154", 3.90mm Width) with 12 leads (PG-DSO-12-20) and is supplied on tape and reel. The device is suitable for surface mount applications and operates within an ambient temperature range of -25°C to 125°C (TJ). This controller is utilized in power supply applications across various industries requiring efficient DC-DC regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width), 12 Leads |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 24.9kHz ~ 139.4kHz |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 3.3V |
| Supplier Device Package | PG-DSO-12-20 |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 1 |
