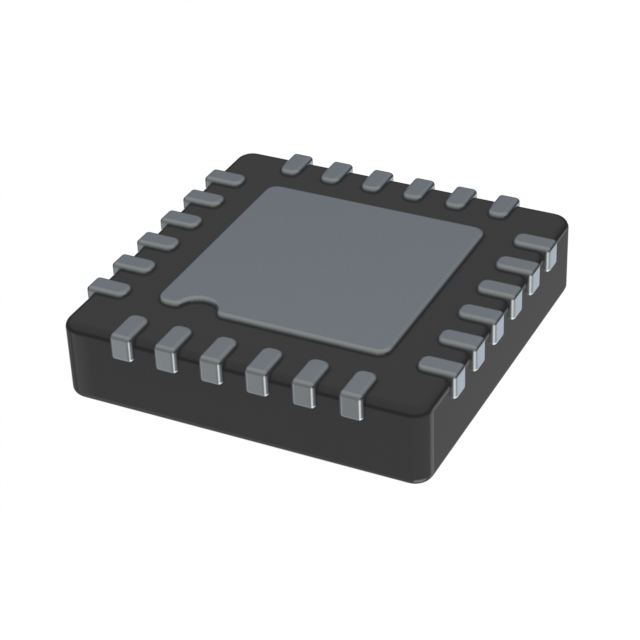

XDPP1100Q024XUMA1
CONTROLLERManufacturer: Infineon Technologies
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck, Boost, Buck-Boost, Full-Bridge, Half-Bridge Regulator Positive Output Step-Up/Step-Down PMBus DC-DC Controller IC PG-VQFN-24-20
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 2MHz |
| Topology | Buck, Boost, Buck-Boost, Full-Bridge, Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Supplier Device Package | PG-VQFN-24-20 |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Watchdog |
| Serial Interfaces | PMBus |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 6 |
