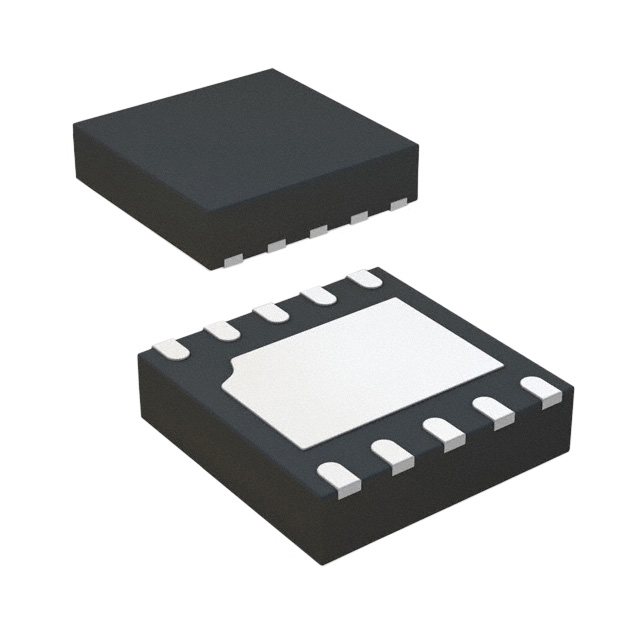

IR3624MTRPBF
IC REG CTRLR BUCK 10-MLPDManufacturer: Infineon Technologies
Categories: DC DC Switching Controllers
Quality Control: Learn More
Infineon Technologies IR3624MTRPBF is a highly efficient DC-DC buck controller designed for step-down power conversion. This single-phase, positive output controller operates with a switching frequency of 600kHz, suitable for applications requiring compact power solutions. Key control features include integrated current limit and soft-start functionality to ensure stable and reliable operation. The device supports a wide input voltage range of 4.5V to 14V and a maximum duty cycle of 71%. Its 10-MLPD (3x3) surface mount package with an exposed pad facilitates efficient thermal management. This component is well-suited for use in the automotive and industrial sectors, powering various subsystems requiring precise voltage regulation. The IR3624MTRPBF is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14V |
| Supplier Device Package | 10-MLPD (3x3) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 71% |
| Clock Sync | No |
| Number of Outputs | 1 |
