BFS17PE6752HTSA1
RF TRANS NPN SOT23-3Manufacturer: Infineon Technologies
Categories: Bipolar RF Transistors
Quality Control: Learn More
Infineon Technologies BFS17PE6752HTSA1 is an NPN bipolar RF transistor designed for surface mount applications. This component operates with a collector-emitter breakdown voltage of 15V and a maximum collector current of 25mA. It features a transition frequency of 1.4GHz and a maximum power dissipation of 280mW. The device exhibits a typical DC current gain (hFE) of 40 at 2mA and 1V, and a noise figure of 3.5dB at 800MHz. Packaged in the PG-SOT23 (TO-236-3, SC-59, SOT-23-3) format, it is supplied on a tape and reel. The BFS17PE6752HTSA1 is suitable for applications requiring high-frequency amplification and switching, commonly found in wireless communication systems and RF front-end modules. Its operating temperature range extends up to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

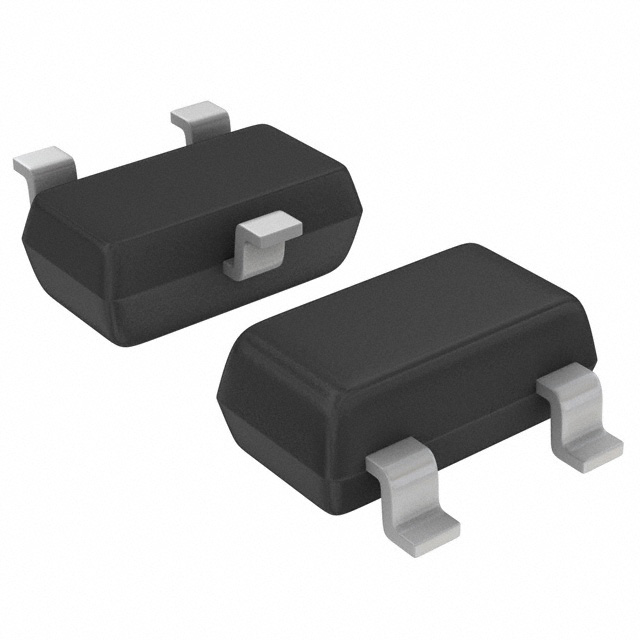

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | - |
| Power - Max | 280mW |
| Current - Collector (Ic) (Max) | 25mA |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 2mA, 1V |
| Frequency - Transition | 1.4GHz |
| Noise Figure (dB Typ @ f) | 3.5dB @ 800MHz |
| Supplier Device Package | PG-SOT23 |
