BFQ790H6327XTSA1
RF TRANS NPN 6.1V 1.85GHZ SOT89Manufacturer: Infineon Technologies
Categories: Bipolar RF Transistors
Quality Control: Learn More

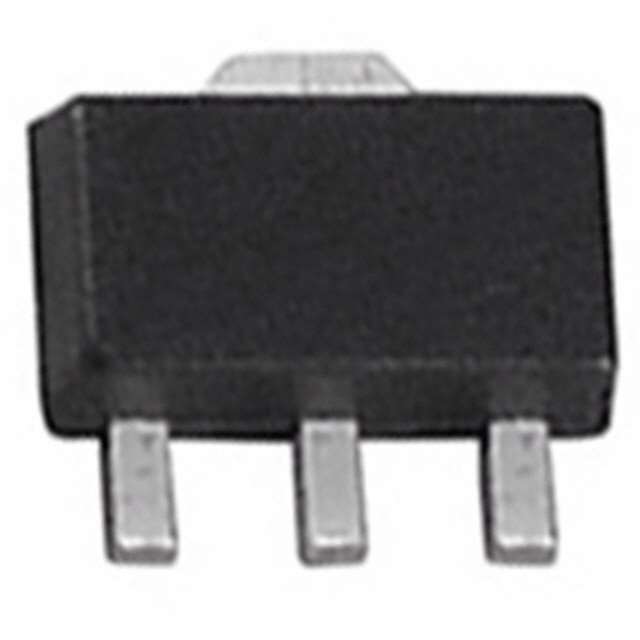

The Infineon Technologies BFQ790H6327XTSA1 is an NPN bipolar RF transistor designed for high-frequency applications. This component operates with a collector-emitter breakdown voltage of 6.1V and a maximum collector current of 300mA, delivering a power output of 1.5W. It features a transition frequency of 1.85GHz and provides a typical gain of 17dB. The noise figure is rated at 2.6dB at 1.8GHz. Packaged in a PG-SOT89 (TO-243AA) surface mount configuration, this transistor is supplied on tape and reel. Its characteristics make it suitable for use in wireless communication systems and other RF circuitry.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Gain | 17dB |
| Power - Max | 1.5W |
| Current - Collector (Ic) (Max) | 300mA |
| Voltage - Collector Emitter Breakdown (Max) | 6.1V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 250mA, 5V |
| Frequency - Transition | 1.85GHz |
| Noise Figure (dB Typ @ f) | 2.6dB @ 1.8GHz |
| Supplier Device Package | PG-SOT89 |
