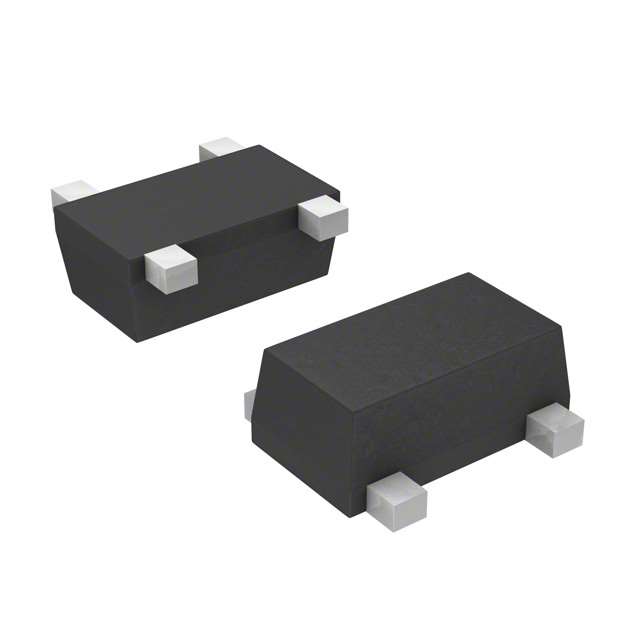

BFP640FE6327
RF TRANS NPN 4.5V 40GHZ 4TSFPManufacturer: Infineon Technologies
Categories: Bipolar RF Transistors
Quality Control: Learn More
The Infineon Technologies BFP640FE6327 is an NPN bipolar RF transistor engineered for high-frequency applications. This surface mount device operates with a collector-emitter breakdown voltage of 4.5V and a maximum collector current of 50mA. It exhibits a minimum DC current gain (hFE) of 110 at 30mA and 3V, with a transition frequency reaching 40GHz. The transistor delivers a typical gain of 23dB and features a low noise figure, ranging from 0.65dB to 1.2dB across the 1.8GHz to 6GHz spectrum. Rated for a maximum power dissipation of 200mW, the BFP640FE6327 is housed in a 4-TSFP package and supplied on tape and reel. This component finds application in wireless communication systems, radar, and other demanding RF front-end designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 23dB |
| Power - Max | 200mW |
| Current - Collector (Ic) (Max) | 50mA |
| Voltage - Collector Emitter Breakdown (Max) | 4.5V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 30mA, 3V |
| Frequency - Transition | 40GHz |
| Noise Figure (dB Typ @ f) | 0.65dB ~ 1.2dB @ 1.8GHz ~ 6GHz |
| Supplier Device Package | 4-TSFP |
