MA2304PNSXUMA1
THE MA2304PNS IS A 2X37 W AUDIOManufacturer: Infineon Technologies
Categories: Audio Amplifiers
Quality Control: Learn More

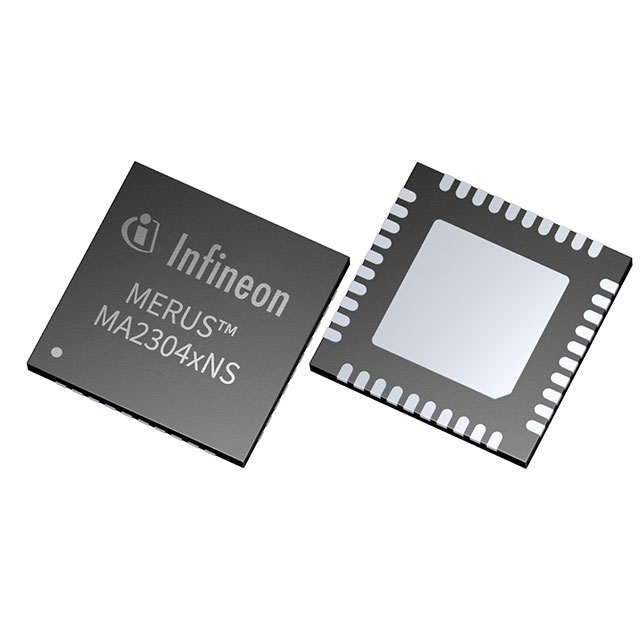

Infineon Technologies MA2304PNSXUMA1 is a 2-channel Class D amplifier. This device delivers up to 37W per channel into a 4-ohm load, or a single channel up to 74W into a 2-ohm load. It is housed in a 40-VFQFN exposed pad package (PG-VQFN-40) for surface mounting. The MA2304PNSXUMA1 operates from a 10V to 20V supply voltage and functions within an ambient temperature range of -25°C to 85°C. This audio amplifier is suitable for applications in the automotive and consumer electronics industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 20V |
| Max Output Power x Channels @ Load | 74W x 1 @ 2Ohm; 37W x 2 @ 4Ohm |
| Supplier Device Package | PG-VQFN-40 |
