MA2304DNSXUMA1
THE MA2304DNS IS A 2X37 W AUDIOManufacturer: Infineon Technologies
Categories: Audio Amplifiers
Quality Control: Learn More

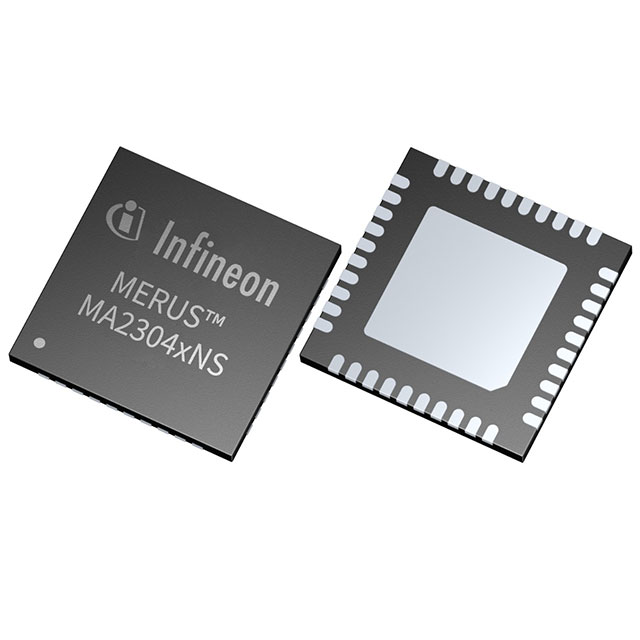

Infineon Technologies MA2304DNSXUMA1 is a 2-channel Class D audio amplifier IC. This device offers a high output power capability, delivering up to 74W into a 2-ohm load in a single-channel configuration or 37W per channel into a 4-ohm load for stereo operation. Designed for surface mount applications, it is supplied in a 40-VFQFN exposed pad package (PG-VQFN-40) and is available on Tape & Reel. The MA2304DNSXUMA1 operates with supply voltages ranging from 10V to 20V and is rated for an ambient temperature range of -25°C to 85°C. This component is suitable for a variety of audio amplification applications, including consumer electronics and automotive audio systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 20V |
| Max Output Power x Channels @ Load | 74W x 1 @ 2Ohm; 37W x 2 @ 4Ohm |
| Supplier Device Package | PG-VQFN-40 |
