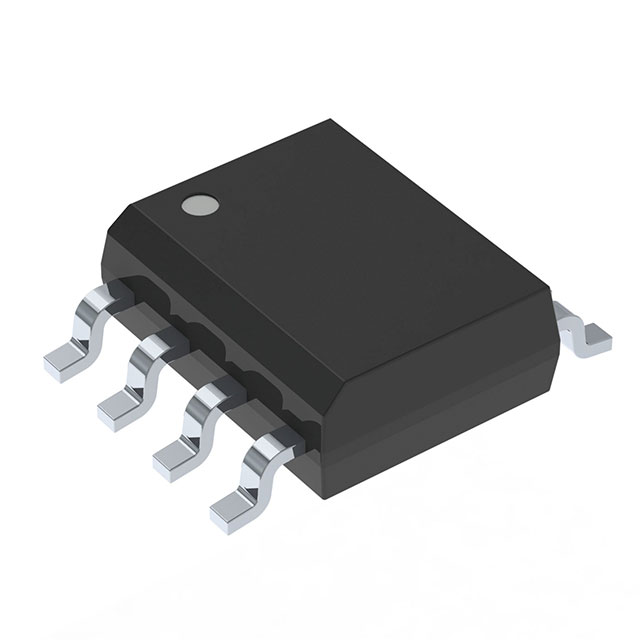

TLE5012BE3005XUMA1
SPEED SENSORS 8DSOManufacturer: Infineon Technologies
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
The Infineon Technologies TLE5012BE3005XUMA1 is a magnetoresistive sensor designed for precise angle measurement. This electronic component utilizes a GMR (Giant Magnetoresistance) technology to detect the magnetic field of an external magnet, making it ideal for applications requiring accurate angular position feedback. The sensor outputs both sine and cosine signals, providing rich data for sophisticated control systems. It supports industry-standard communication protocols, including SENT (Single Edge Nibble Transmission) and SPI (Serial Peripheral Interface), facilitating seamless integration into automotive and industrial automation platforms.
Qualified to AEC-Q100 standards, the TLE5012BE3005XUMA1 is built for robust performance in demanding environments, operating across a wide temperature range of -40°C to 150°C. The component is supplied in a PG-DSO-8 package, a surface-mount design suitable for automated assembly processes and delivered on tape and reel. Its 3V to 5.5V supply voltage range and ability to measure a full 0° to 360° rotation make it a versatile choice for steering angle sensing, electric motor control, and other high-performance positioning applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Output | SENT, SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 3V ~ 5.5V |
| Linearity | - |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Magnetoresistive |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | PG-DSO-8 |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Output Signal | Cosine, Sine |
| Grade | Automotive |
| Programmable | - |
| Qualification | AEC-Q100 |
