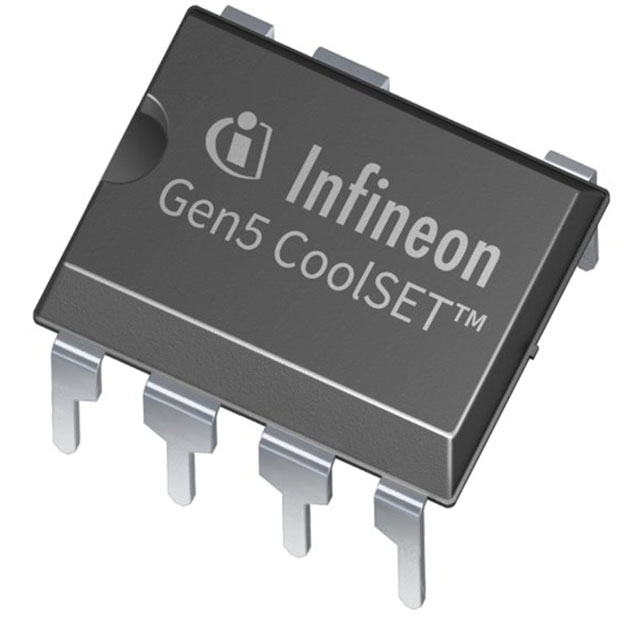

ICE5AR3995BZXKLA1
FLYBACK REGULATORManufacturer: Infineon Technologies
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Buck, Flyback Topology 100kHz PG-DIP-7-10
Additional Information
Series: CoolMOS™, CoolSET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 75% |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 950V |
| Output Isolation | Isolated |
| Topology | Buck, Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 27V |
| Supplier Device Package | PG-DIP-7-10 |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Voltage - Start Up | 16 V |
| Control Features | Soft Start |
| Power (Watts) | 30 W |
