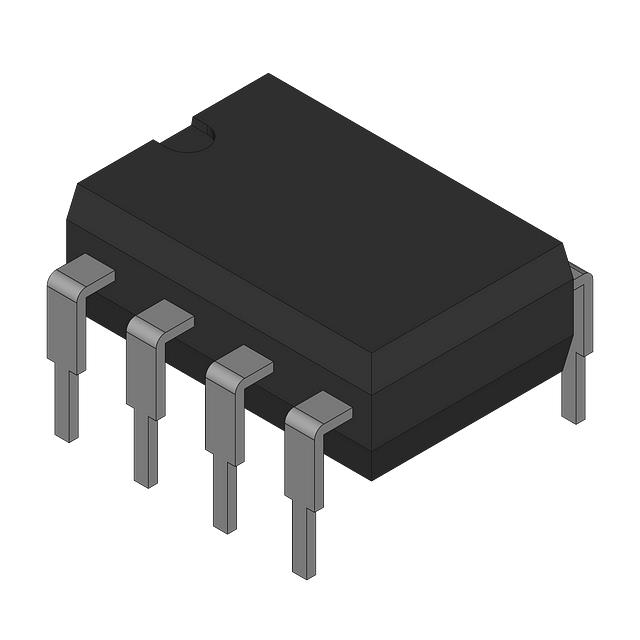

ICE3AR10080JZTXKLA1
1.1A, 113KHZ SWITCHING FREQ-MAXManufacturer: Infineon Technologies
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 100kHz PG-DIP-7-4
Additional Information
Series: CoolSET®-F3r80RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Duty Cycle | 75% |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 27V |
| Supplier Device Package | PG-DIP-7-4 |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, UVLO |
| Voltage - Start Up | 17 V |
| Control Features | Soft Start |
| Power (Watts) | 22 W |
