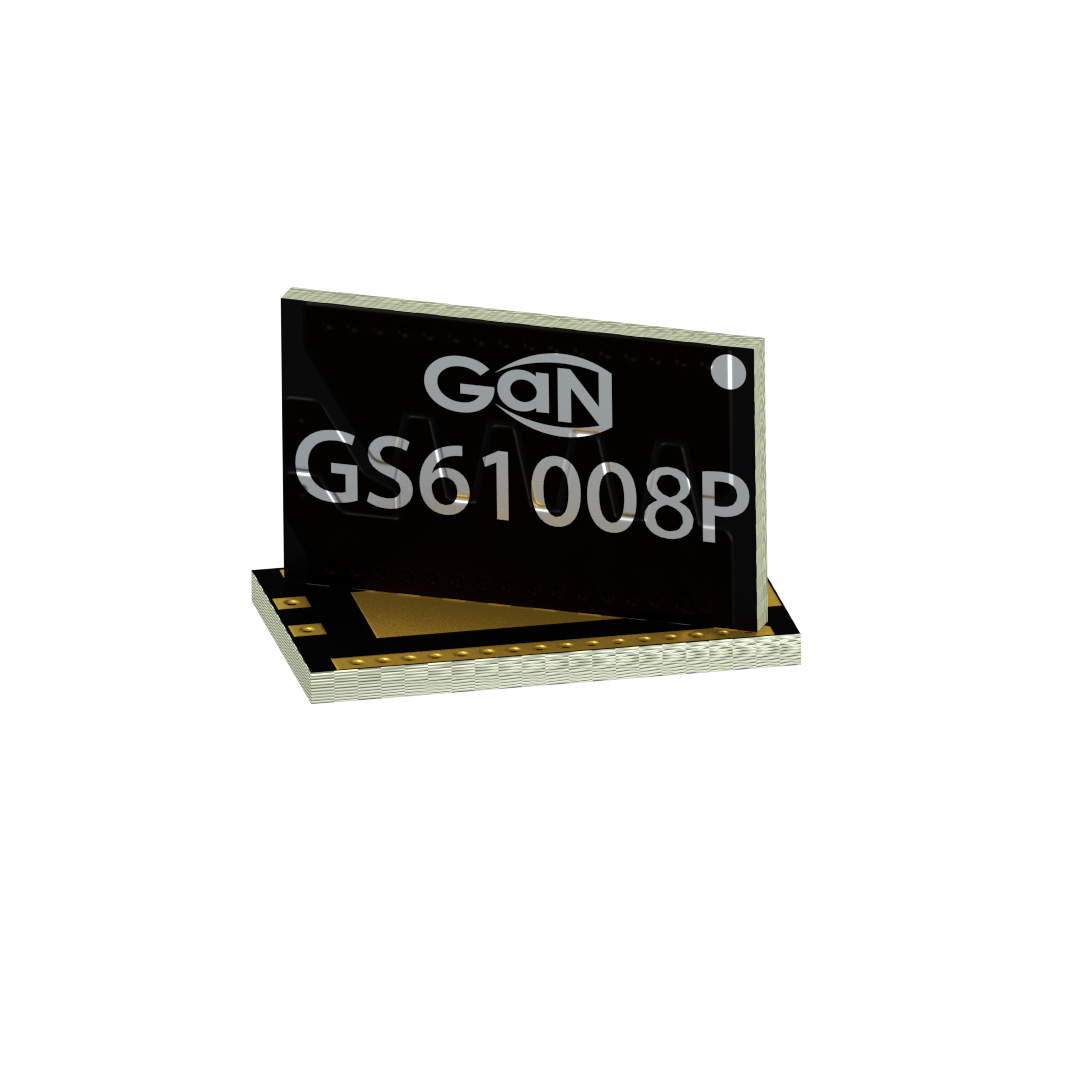

GS61008P-MR

Quality Control: Learn More

N-Channel 100 V 90A (Tc) Surface Mount

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Digi-Reel®

Download Free CAD Model:

Technical Details:

Packaging	Digi-Reel®
Package / Case	5-SMD, No Lead
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C
Technology	GaNFET (Gallium Nitride)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Rds On (Max) @ Id, Vgs	9.5mOhm @ 27A, 6V
FET Feature	-
Power Dissipation (Max)	-
Vgs(th) (Max) @ Id	2.6V @ 7mA
Supplier Device Package	-
Grade	-
Drive Voltage (Max Rds On, Min Rds On)	6V
Vgs (Max)	+7V, -10V
Drain to Source Voltage (Vdss)	100 V
Gate Charge (Qg) (Max) @ Vgs	8 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds	600 pF @ 50 V
Qualification	-
