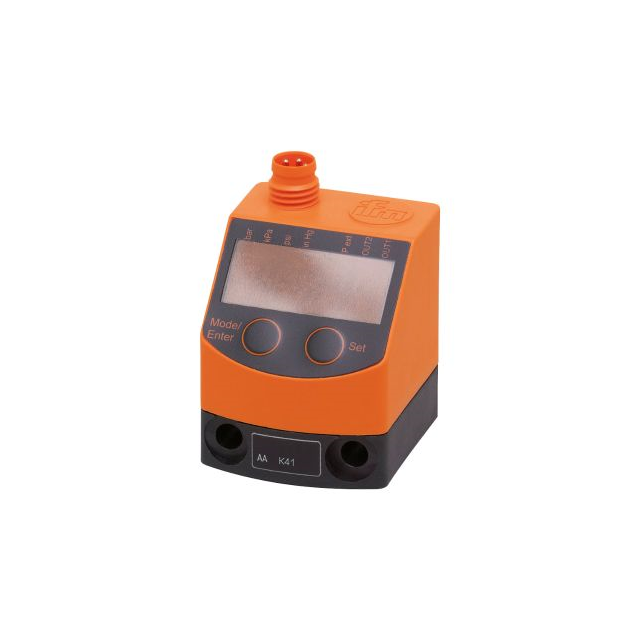

PQ3834
SENSOR 14.5PSI 1/8"" .02AManufacturer: ifm efector, inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) Vacuum Female - 1/8"" (3.18mm) BSPP 4 mA ~ 20 mA Module
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Module |
| Output Type | Analog Current, PNP- NC/NO |
| Output | 4 mA ~ 20 mA |
| Operating Pressure | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) |
| Pressure Type | Vacuum |
| Accuracy | ±0.5% |
| Operating Temperature | 0°C ~ 70°C |
| Termination Style | M8 |
| Voltage - Supply | 18V ~ 32V |
| Port Size | Female - 1/8"" (3.18mm) BSPP |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 435.11PSI (3000kPa) |
