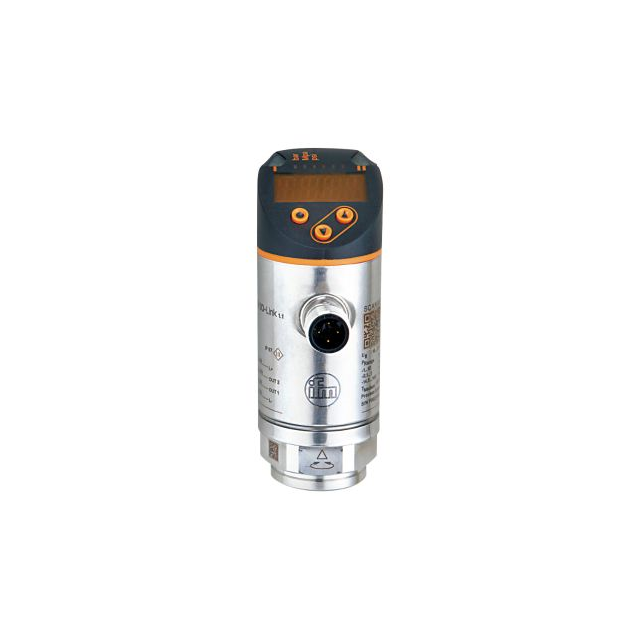

PN2098
SENSOR 3.63PSI 1/4"" 10VManufacturer: ifm efector, inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor -0.18PSI ~ 3.63PSI (-1.25kPa ~ 25kPa) Male - 1/4"" (6.35mm) BSPP 4mA ~ 20mA, 0V ~ 10V Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Module |
| Output Type | Analog Current, Analog Voltage, NPN/PNP- NC/NO |
| Output | 4mA ~ 20mA, 0V ~ 10V |
| Operating Pressure | -0.18PSI ~ 3.63PSI (-1.25kPa ~ 25kPa) |
| Pressure Type | - |
| Accuracy | ±0.4% |
| Operating Temperature | -25°C ~ 80°C |
| Termination Style | M12, 4 Pin |
| Voltage - Supply | 18V ~ 30V |
| Port Size | Male - 1/4"" (6.35mm) BSPP |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 435.11PSI (3000kPa) |
