PG2451
SENSOR 3620PSI 1/2"" .02AManufacturer: ifm efector, inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

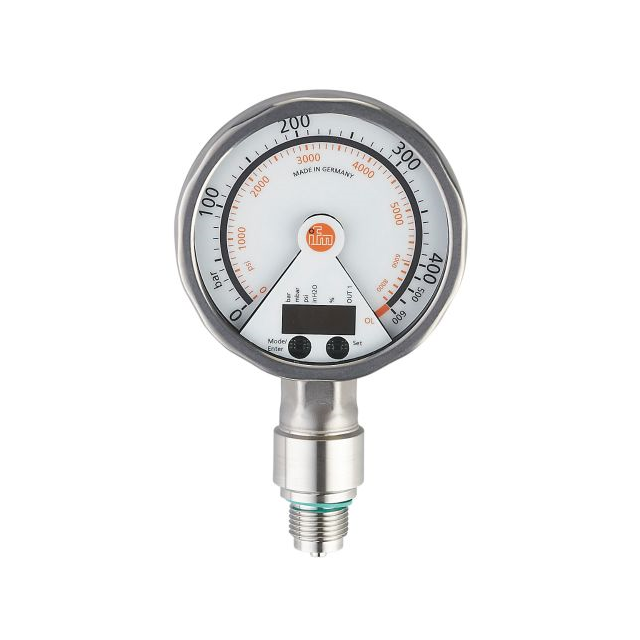

Pressure Sensor 3625.94PSI (25000kPa) Male - 1/2"" (12.7mm) BSPP 4 mA ~ 20 mA Module Box with Display
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Module Box with Display |
| Output Type | Analog Current, NPN/PNP- NC/NO |
| Output | 4 mA ~ 20 mA |
| Operating Pressure | 3625.94PSI (25000kPa) |
| Pressure Type | - |
| Accuracy | ±0.6% |
| Operating Temperature | -20°C ~ 80°C |
| Termination Style | M12, 4 Pin |
| Voltage - Supply | 18V ~ 32V |
| Port Size | Male - 1/2"" (12.7mm) BSPP |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 14500PSI (100000kPa) |
