LBW7P-1T04PW
LBW FLUSH PILOT 24V PWManufacturer: IDEC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

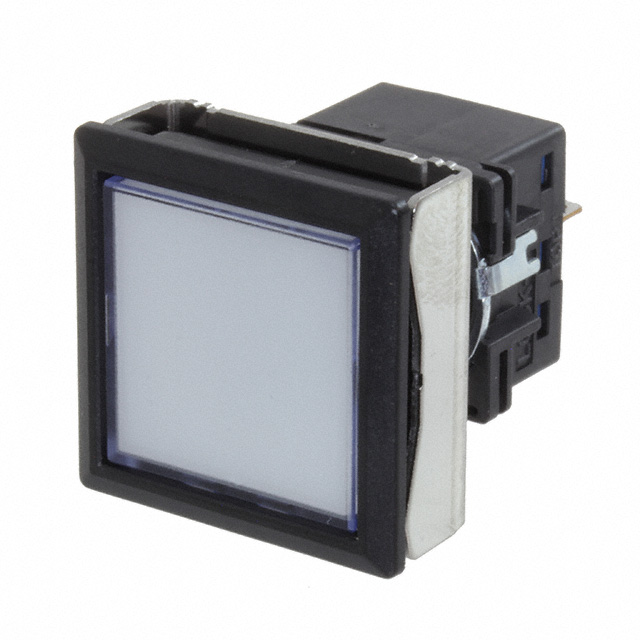

IDEC LBW Series LED Panel Indicator, part number LBW7P-1T04PW. This component features a white LED illumination with a 24V AC/DC rating. The unit is designed for panel mounting with a square cutout of 22.50mm x 22.50mm (0.89" x 0.89"). It offers an IP65 ingress protection rating for enhanced durability in demanding environments. Termination is via solder lugs. The LBW7P-1T04PW is suitable for applications in industrial automation, control panels, and instrumentation.
Additional Information
Series: LBWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | - |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Solder Lug |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP65 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.89"" x 0.89"" (22.50mm x 22.50mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | White |
| Panel Cutout Shape | Square |
| Lens Style | Square with Flat Top |
| Lens Size | 26.00mm |
