LBW7MP-1T04G
LBW FLUSH PILOT 24V GREENManufacturer: IDEC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

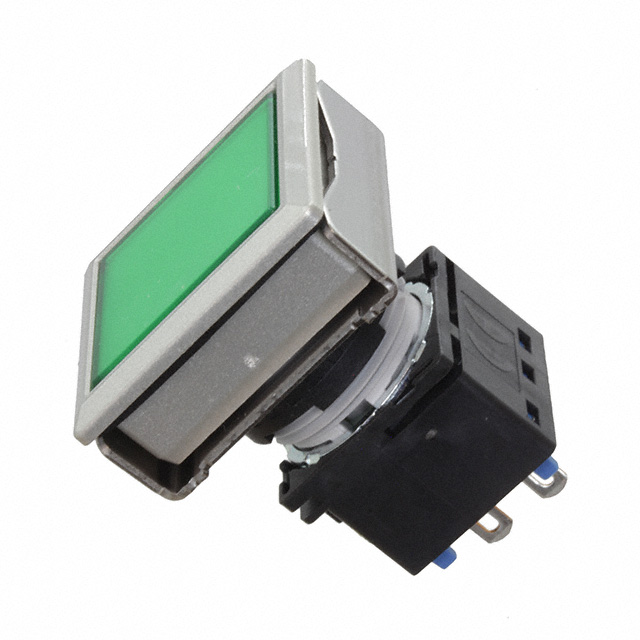

The IDEC LBW Series LBW7MP-1T04G is a 24V panel indicator with a green LED lamp. This component features a flush lens style with a square, flat-top design and a 26.00mm lens size, fitting a standard 22.50mm x 22.50mm square panel cutout. Designed for robust operation, it provides IP65 ingress protection. The termination style is solder lug, and it is rated for AC/DC operation. This pilot light is commonly utilized in industrial automation, control panels, and electrical equipment where reliable visual indication is critical.
Additional Information
Series: LBWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | - |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Solder Lug |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP65 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.89"" x 0.89"" (22.50mm x 22.50mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Square |
| Lens Style | Square with Flat Top |
| Lens Size | 26.00mm |
