LBW7MP-1T04A
LBW FLUSH PILOT 24V AMBERManufacturer: IDEC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

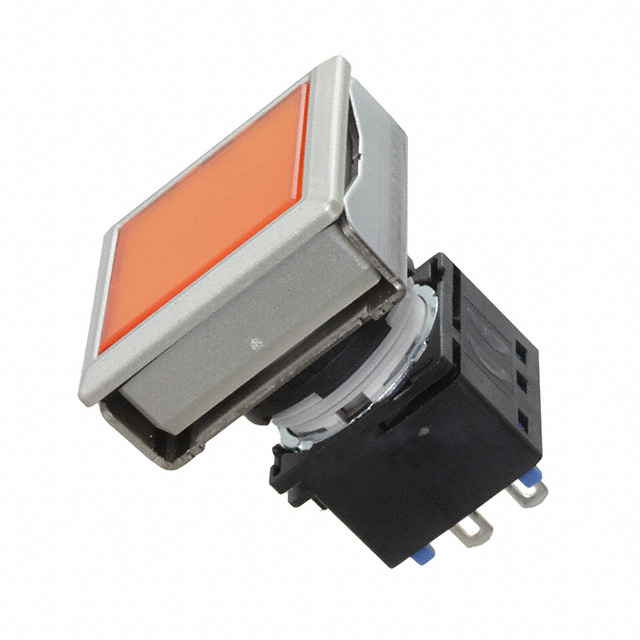

IDEC LBW Series, part number LBW7MP-1T04A, is a flush pilot light designed for panel mounting. This LED indicator features a square lens with a flat top, measuring 26.00mm, and requires a standard 22.50mm x 22.50mm square panel cutout. The component is rated for 24V AC/DC operation and offers an IP65 ingress protection rating, ensuring suitability for demanding environments. The termination style utilizes solder lugs for secure connection. The LBW7MP-1T04A is commonly employed in industrial automation, control panels, and building management systems where reliable visual indication is critical.
Additional Information
Series: LBWRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | - |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Solder Lug |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP65 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.89"" x 0.89"" (22.50mm x 22.50mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Amber |
| Panel Cutout Shape | Square |
| Lens Style | Square with Flat Top |
| Lens Size | 26.00mm |
