AP8M255-PW
PILOT LIGHT 8MM AP8 SERIESManufacturer: IDEC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
IDEC AP8M255-PW is a white LED panel indicator from the AP8 series, designed for robust performance. This component operates at 5V with a typical current draw of 9mA, featuring a solder lug termination style for secure connections. The unit conforms to IP40 ingress protection standards and utilizes an 8mm diameter round lens with a domed top for clear visibility. Suitable for industrial automation and control panel applications, the IDEC AP8M255-PW offers reliable illumination in demanding environments.
Additional Information
Series: AP8RoHS Status: RoHS CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 9mA |
| Voltage | 5V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Solder Lug |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP40 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.32"" (8.10mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 8.00mm Dia |
Request a Quote
Clients Also Buy

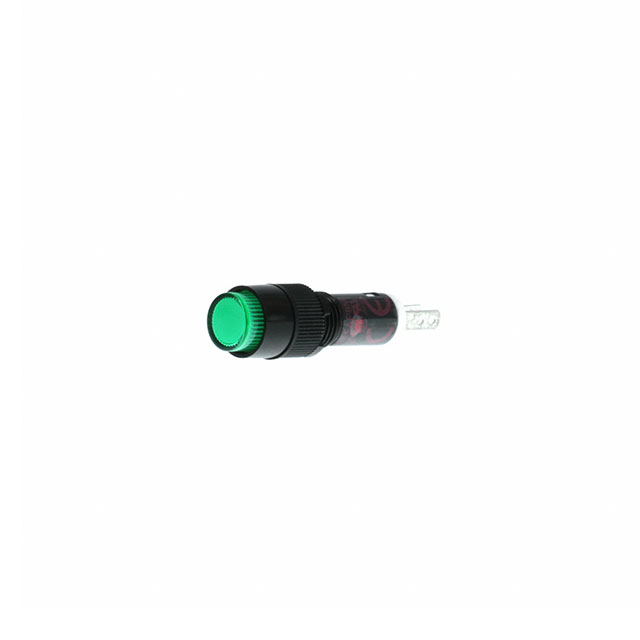

AP8M122-G
