AP6M122-R
LED PANEL INDICATOR RED 24V IP65Manufacturer: IDEC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

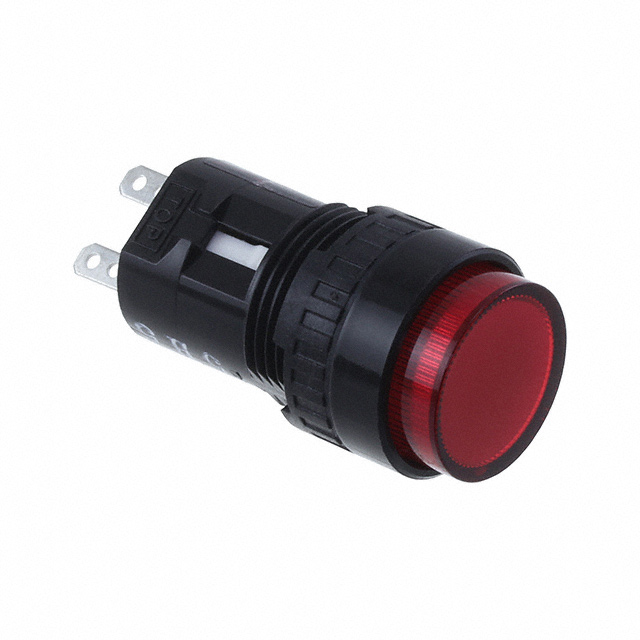

IDEC AP6 Series LED Panel Indicator, Part Number AP6M122-R. This robust indicator features a red LED lamp with a round, flat-top lens, measuring 15.60mm in diameter, designed for a 16.20mm (0.64") round panel cutout. Engineered for demanding environments, it boasts an IP65 ingress protection rating. The unit operates at 24V DC and utilizes solder lug termination for secure connections. This component is commonly found in industrial automation, control panels, and various equipment requiring reliable visual status indication.
Additional Information
Series: AP6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | - |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Solder Lug |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP65 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.64"" (16.20mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 15.60mm Dia |
Request a Quote
Clients Also Buy

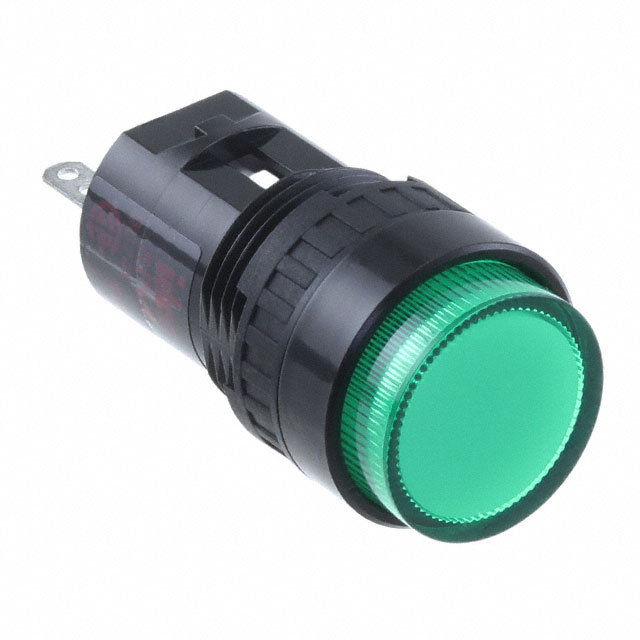

AP6M122-G
