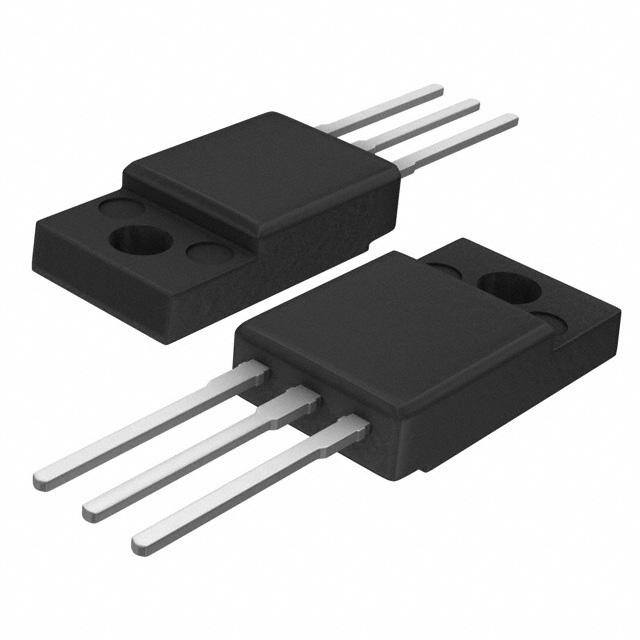

ICE20N60FP
Superjunction MOSFETManufacturer: IceMOS Technology
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 20A (Tc) 35W (Tc) Through Hole TO-220FP
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 35W (Tc) |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Supplier Device Package | TO-220FP |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2064 pF @ 25 V |
Request a Quote
