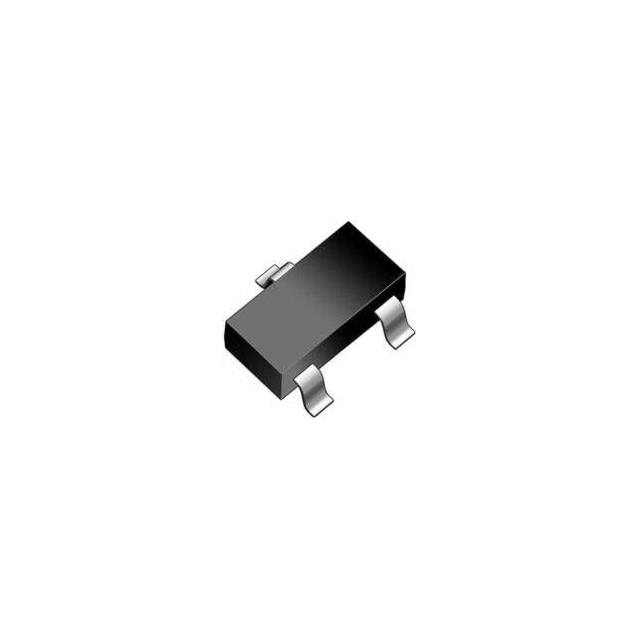

H431LK
ADJUSTABLE PRECISIONSHUNT REGULAManufacturer: HY Electronic (Cayman) Limited
Categories: Voltage Reference
Quality Control: Learn More
Shunt Voltage Reference IC Adjustable 2.495V 40 VV ±0.5% 150 mA SOT-23
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:%20Limited&mpn=H431LK&lbl=1&lbc=000000&q3=1)
Technical Details:
| Tolerance | ±0.5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 50ppm/°C |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -60°C ~ 125°C |
| Current - Supply | - |
| Supplier Device Package | SOT-23 |
| Voltage - Output (Min/Fixed) | 2.495V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Current - Cathode | 500 µA |
| Current - Output | 150 mA |
| Voltage - Output (Max) | 40 V |
