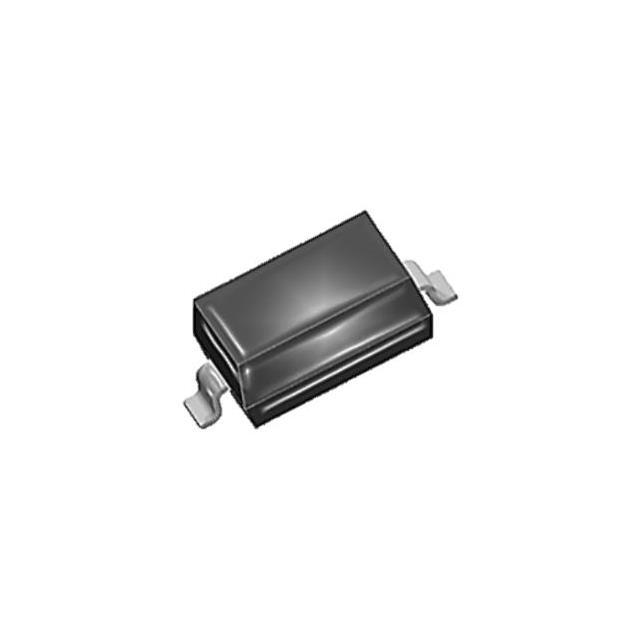

SD103AWS
Surface Mount Schottky Barrier DManufacturer: HY Electronic (Cayman) Limited
Categories: Single Diodes
Quality Control: Learn More
Diode 40 V 200mA Surface Mount SOD-323
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:%20Limited&mpn=SD103AWS&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 10 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 50pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | 125°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 30 V |
Request a Quote
