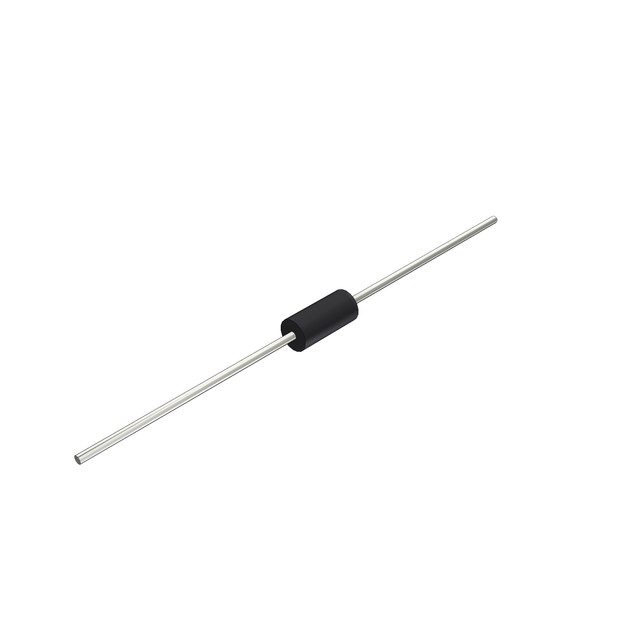

RL207G
DIODE GEN PURP 1KV 2A DO15Manufacturer: HY Electronic (Cayman) Limited
Categories: Single Diodes
Quality Control: Learn More
Diode 1000 V 2A Through Hole DO-15
Additional Information
Series: RLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:%20Limited&mpn=RL207G&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | DO-15 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
