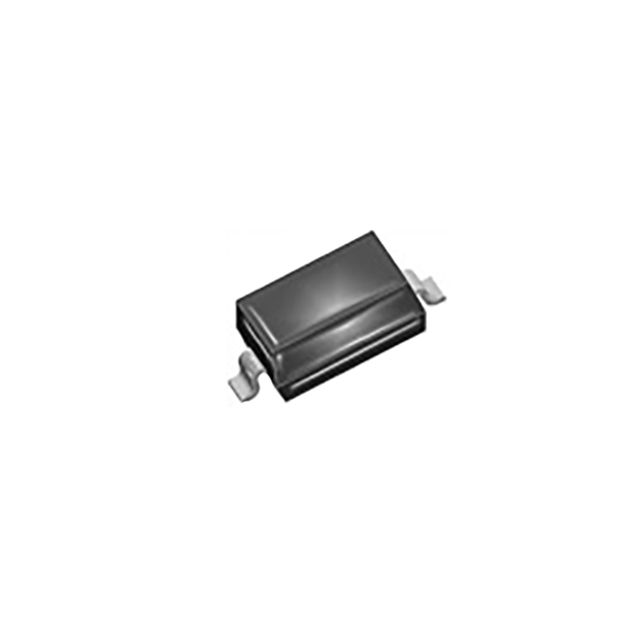

BAT54WS (S1)
DIODE SCHOTTKY 30V 300MA SOD323Manufacturer: HY Electronic (Cayman) Limited
Categories: Single Diodes
Quality Control: Learn More
Diode 30 V 300mA Surface Mount SOD-323
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:%20Limited&mpn=BAT54WS%20(S1)&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 300mA |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
