1N4148WT
DIODE GEN PURP 100V 150MA SOD523Manufacturer: HY Electronic (Cayman) Limited
Categories: Single Diodes
Quality Control: Learn More

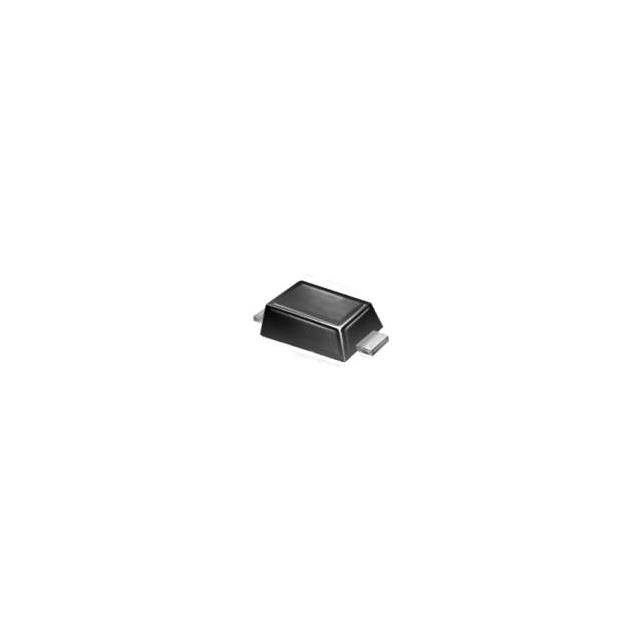

Diode 100 V 150mA Surface Mount SOD-523
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:%20Limited&mpn=1N4148WT&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 150mA |
| Supplier Device Package | SOD-523 |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
