MMBT5401
Small Signal TransistorManufacturer: HY Electronic (Cayman) Limited
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 150 V 600 mA 100MHz 300 mW Surface Mount SOT-23
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:%20Limited&mpn=MMBT5401&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 5V |
| Frequency - Transition | 100MHz |

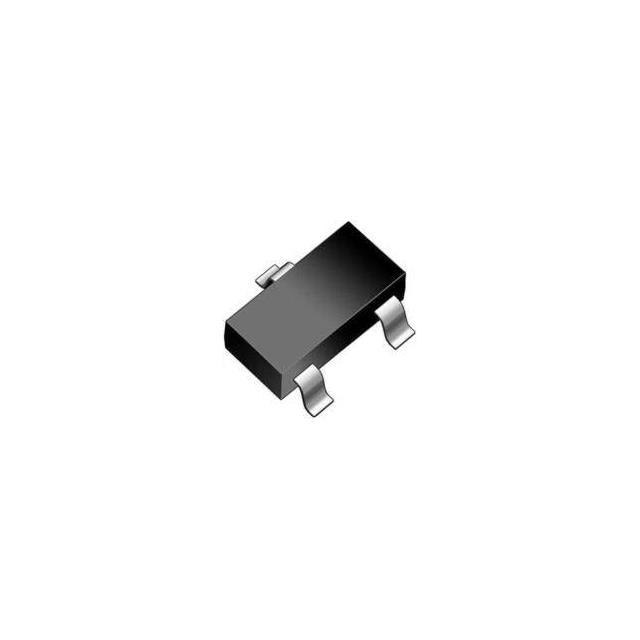

| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 150 V |
| Power - Max | 300 mW |
