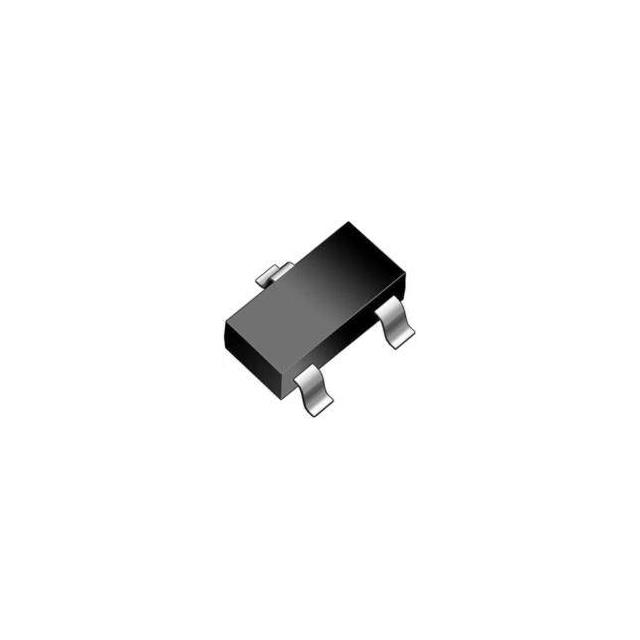

MMBT2222A
SMALL SIGNAL TRANSISTORManufacturer: HY Electronic (Cayman) Limited
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 40 V 600 mA 300MHz 300 mW Surface Mount SOT-23
Additional Information
Series: MMBTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:%20Limited&mpn=MMBT2222A&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | 300MHz |
| Supplier Device Package | SOT-23 |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 300 mW |
