GBL606
GLASS PASSIVATED BRIDGE RECTIFIEManufacturer: HY Electronic (Cayman) Limited
Categories: Bridge Rectifiers
Quality Control: Learn More

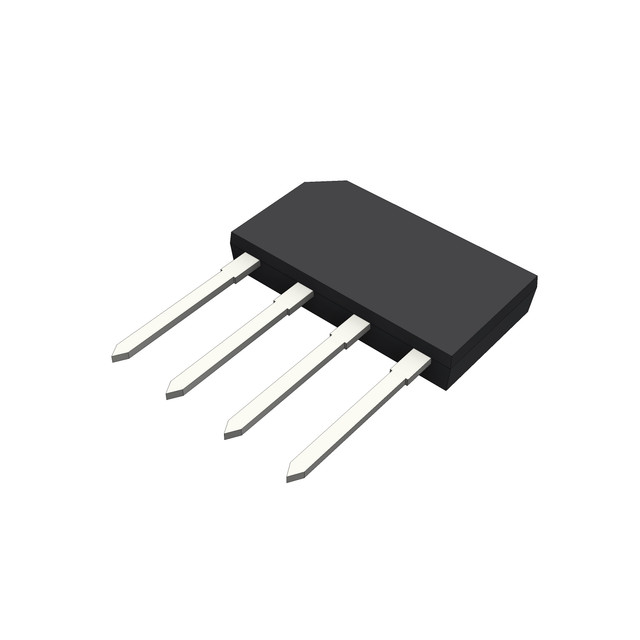

Bridge Rectifier Single Phase Standard 600 V Through Hole 2GBJ
Additional Information
Series: GBLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:%20Limited&mpn=GBL606&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tube |
| Package / Case | 4-SIP, GBJ |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 2GBJ |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 6 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
