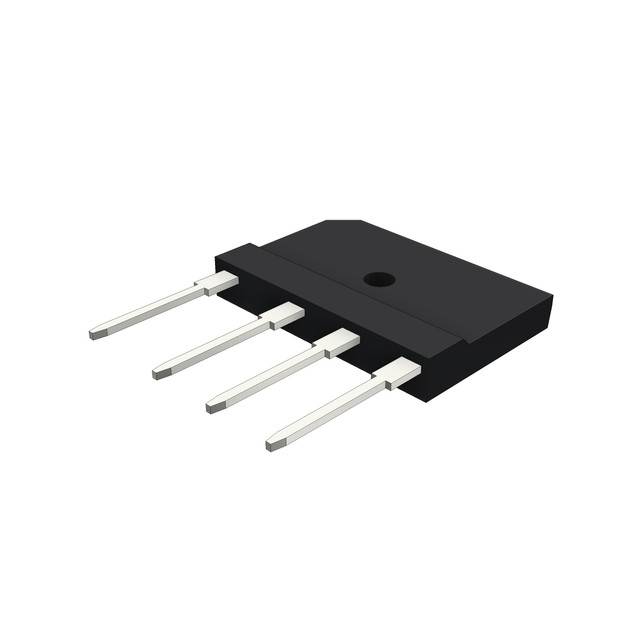

GBJ3508
GLASS PASSIVATED BRIDGE RECTIFIEManufacturer: HY Electronic (Cayman) Limited
Categories: Bridge Rectifiers
Quality Control: Learn More
Bridge Rectifier Single Phase Standard 800 V Through Hole GBJ
Additional Information
Series: GBJRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:%20Limited&mpn=GBJ3508&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tube |
| Package / Case | 4-SIP, GBJ |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | GBJ |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
