HOA1887-013
SENSOR OPT SLOT DARL MODULEManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Transistor Output
Quality Control: Learn More

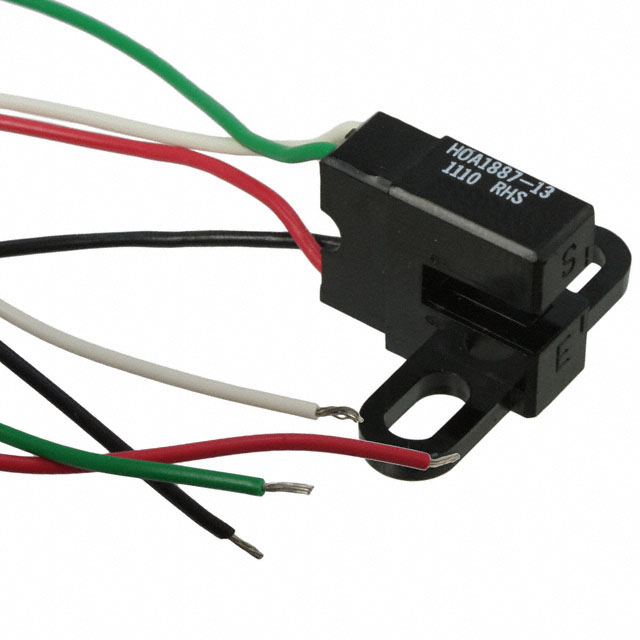

Honeywell Sensing and Productivity Solutions HOA1887-013 is a through-beam optical sensor module featuring a photodarlington output. This pre-wired component offers a sensing distance of 0.125 inches (3.18mm) and is designed for chassis mounting. Key electrical specifications include a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The collector-emitter breakdown voltage (Vce) is rated at a maximum of 15 V, with a response time of 75µs. This device is suitable for applications requiring non-contact sensing, often found in industrial automation, material handling, and office equipment. It operates reliably within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount, Wire Lead |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Photodarlington |
| Response Time | 75µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Current - DC Forward (If) (Max) | 50 mA |
