HOA1881-013
SENSOR OPT SLOT DARL MODULEManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Transistor Output
Quality Control: Learn More

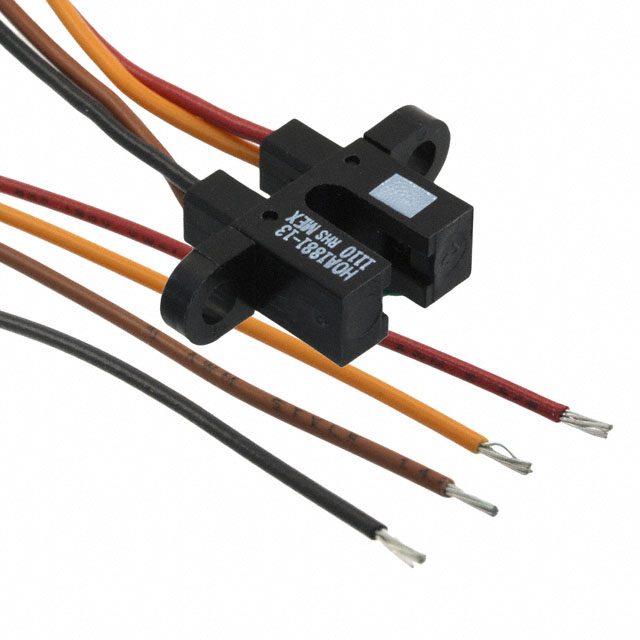

Honeywell Sensing and Productivity Solutions HOA1881-013 is a through-beam optical sensor module featuring a photodarlington output. This pre-wired module offers a sensing distance of 0.125" (3.18mm) and a maximum collector current of 30 mA with a collector-emitter breakdown voltage of 15V. The photodarlington configuration provides enhanced sensitivity. With a maximum DC forward current of 50 mA, this component is suitable for applications requiring efficient optical detection. The module is designed for chassis mounting and operates within a temperature range of -40°C to 85°C. Its response time is rated at 75µs. This component finds application in industrial automation, sensing, and control systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Photodarlington |
| Response Time | 75µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Current - DC Forward (If) (Max) | 50 mA |
