HOA1875-003
SENSOR OPT SLOT DARL MODULEManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Transistor Output
Quality Control: Learn More

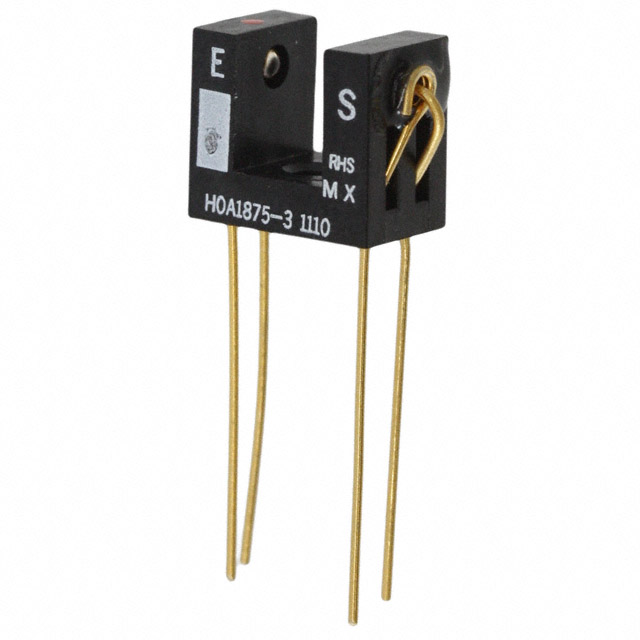

Honeywell Sensing and Productivity Solutions HOA1875-003 is a through-beam optical sensor module featuring a photodarlington output. This slotted sensor provides a sensing distance of 0.200 inches (5.08mm) and a response time of 75µs. It is designed for through-hole mounting and operates with a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The collector emitter breakdown voltage (Vce) is a maximum of 15 V. Operating within an extended temperature range of -55°C to 100°C, this component is suitable for applications in industrial automation, object detection, and motion sensing. The HOA1875-003 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Slotted |
| Sensing Distance | 0.200"" (5.08mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Output Configuration | Photodarlington |
| Response Time | 75µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
| Current - DC Forward (If) (Max) | 50 mA |
