HOA1870-031
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Transistor Output
Quality Control: Learn More

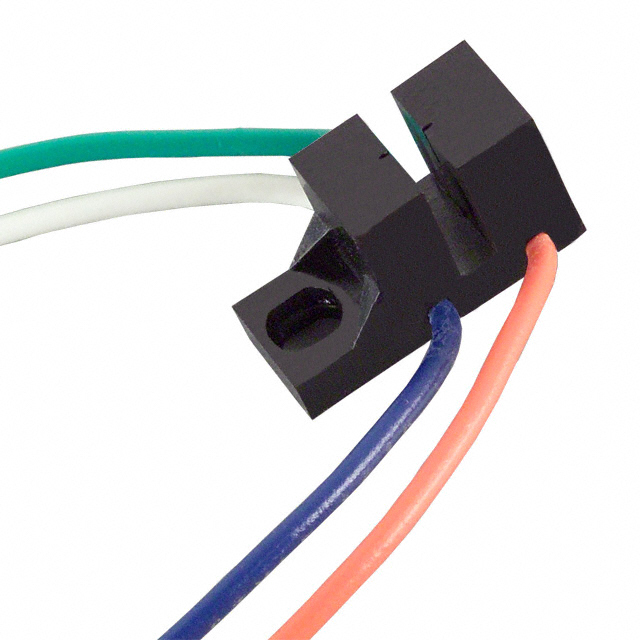

Honeywell Sensing and Productivity Solutions HOA1870-031 is a through-beam optical sensor module featuring a phototransistor output. This component offers a sensing distance of 0.070 inches (1.78mm) and a pre-wired module package for straightforward integration. Key electrical specifications include a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The device operates with a collector-emitter breakdown voltage of up to 30 V. With a response time of 15µs for both turn-on and turn-off, it is suitable for applications requiring precise timing. The HOA1870-031 is designed for chassis mounting and operates within an ambient temperature range of -40°C to 85°C. This component finds utility in various industrial automation, motion control, and object detection systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.070"" (1.78mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 15µs, 15µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
