HOA0880-L51
SENSOR OPT SLOT TRANSISTOR MODULManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Transistor Output
Quality Control: Learn More

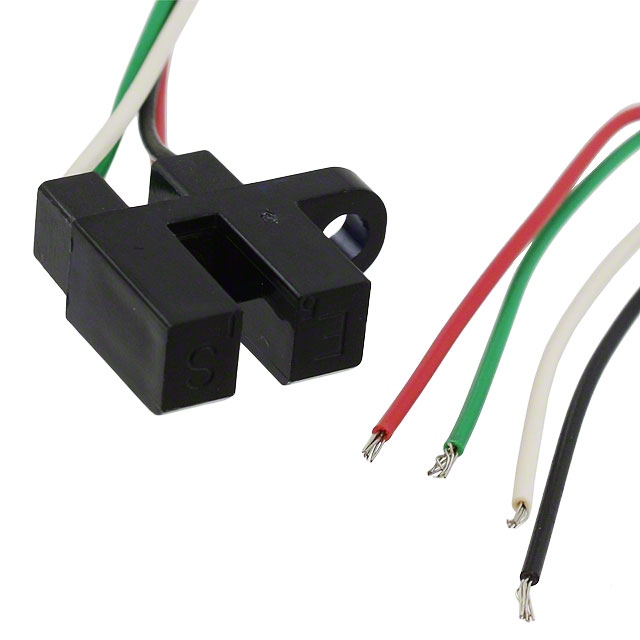

Honeywell Sensing and Productivity Solutions HOA0880-L51 is a through-beam optical sensor module featuring a transistor output. This component offers a sensing distance of 0.125 inches (3.18mm) and a quick response time of 15µs. The module is pre-wired with wire leads and designed for chassis mounting. It supports a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA, with a collector emitter breakdown voltage of up to 30 V. The HOA0880-L51 operates within an ambient temperature range of -40°C to 85°C and is supplied in bulk packaging. This sensor is suitable for applications in industrial automation, security systems, and general sensing requirements where precise object detection via a through-beam configuration is needed.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount, Wire Lead |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Transistor |
| Response Time | 15µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
