HOA0865-T55
SENSOR OPT SLOT TRANS PCB MTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Transistor Output
Quality Control: Learn More

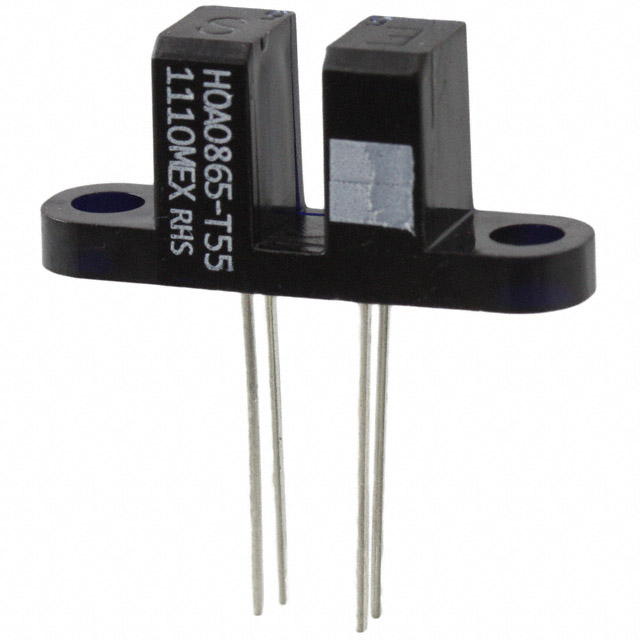

The Honeywell Sensing and Productivity Solutions HOA0865-T55 is a through-beam optical sensor with a transistor output. Featuring a 0.125" (3.18mm) sensing distance, this component is designed for PCB mounting and utilizes a through-hole package. It offers a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The device operates within a temperature range of -40°C to 85°C and boasts a response time of 15µs. The maximum collector emitter breakdown voltage is 30 V. This sensor is suitable for applications requiring precise detection in industrial automation, consumer electronics, and medical devices. Packaged in bulk, the HOA0865-T55 provides reliable optical sensing capabilities.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Transistor |
| Response Time | 15µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
